Pro Advanced Waterproofing 48 x 72 Custom Tiled Shower Kit
A complete, easy to install Waterproofing Shower Kit system for maintenance-free tiled showers
With amazing grate cover choices and screwless design
Available in your choice of ABS or PVC drain connection

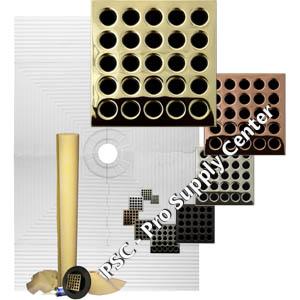

Pro Advanced Custom Tiled Shower Kit 48 x 72
- All the components required to build a fully bonded water tight assembly for tiled showers.
- Includes the highest quality, most innovative and attractive drain system on the market.
- Protects wall cavities against water and vapor penetrations.
- Prefabricated sloped pan eliminates mortar bed, reducing weight and installation time.
- System can use modified thinset for better adhesion and elimination of failure possibilities.
- Install glass tiles with this system where unmodified thinset systems don't allow these materials.
- Membrane tested at 0.07 PERM rating - much lower than required for steam showers!
The videos above provide an excellent general guideline for installation. The 32 x 60 installation video shows the general installation techniques for installing a 32 x 60 kit (video example shows offset installation, but principles for the 48 x 72 are identical). The curb installation in the video shows general installation tips for installing optional curb sections. You may build your own curbs and follow the same general guidelines for waterproofing as shown in the video. Some actual steps may vary or additional steps may be required depending on your specific kit. The 72 x 72 Pan Installation Video shows you how to add extension sections to the central 48 x 48 pan to create larger sizes. Your 48 x 72 kit will use one set of extensions which will be trimmed to accommodate the rectangular shape. Please examine this 48 x 72 pan .pdf to see how you would prepare a set of extensions for use in this kit. Some actual steps may vary or additional steps may be required depending on your specific kit.
The Pro Advanced Custom Shower Kit package includes:
- 1 Shower Tray, 48" x 72" (pan)
- Total of 135 SF of Waterproofing Membrane (approx. 39.5" wide x 40' 10" long)
- 1 - 41' x 5" or 6" Waterproofing Joint Strip
- 1 Pro Advanced Drain in ABS or PVC with selection from 10 stunning grate cover choices
- 1 Grate Puller (Grate is screwless!) and 1 easily accessed integrated hair trap
- 4 Pre-formed Inside corners
- 1 Tube of waterproofing sealant for failsafe membrane to drain-flange bond
- When Optional Curb is Chosen, Includes 2 Preformed Outside Corners.
Grates:
- Grate size: 3 3/4" x 3 3/4"
- Comes with grate puller to easily lift grate
- Features screw-less design and accommodates integrated hair trap

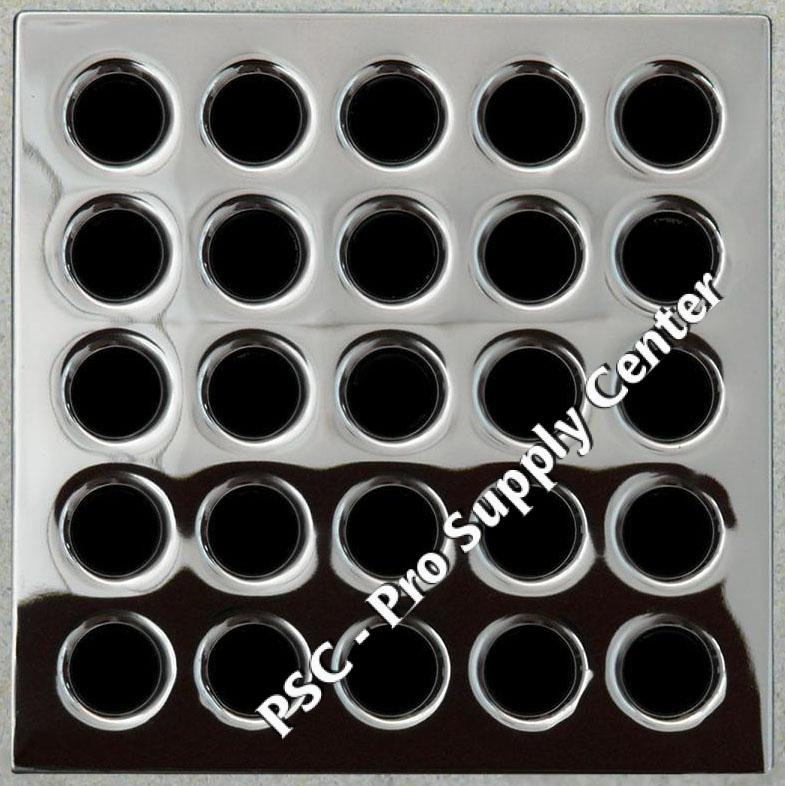

Polished Chrome

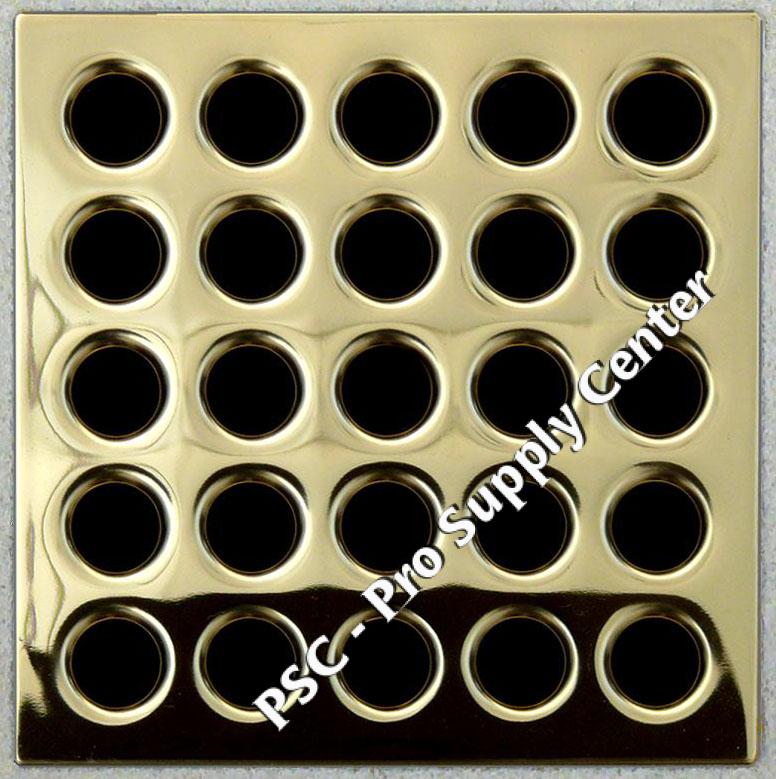

Bright Brass

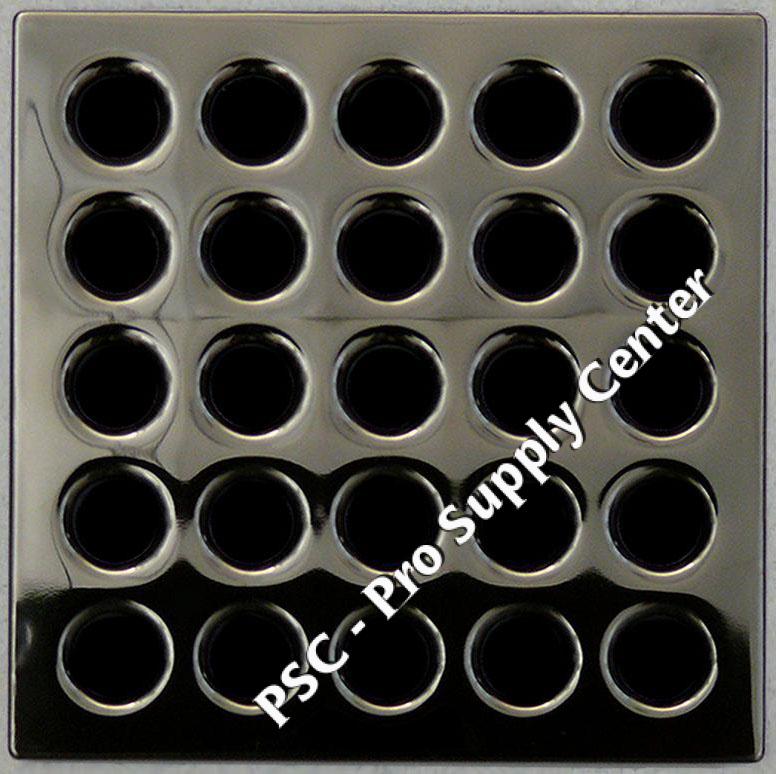

Black Chrome

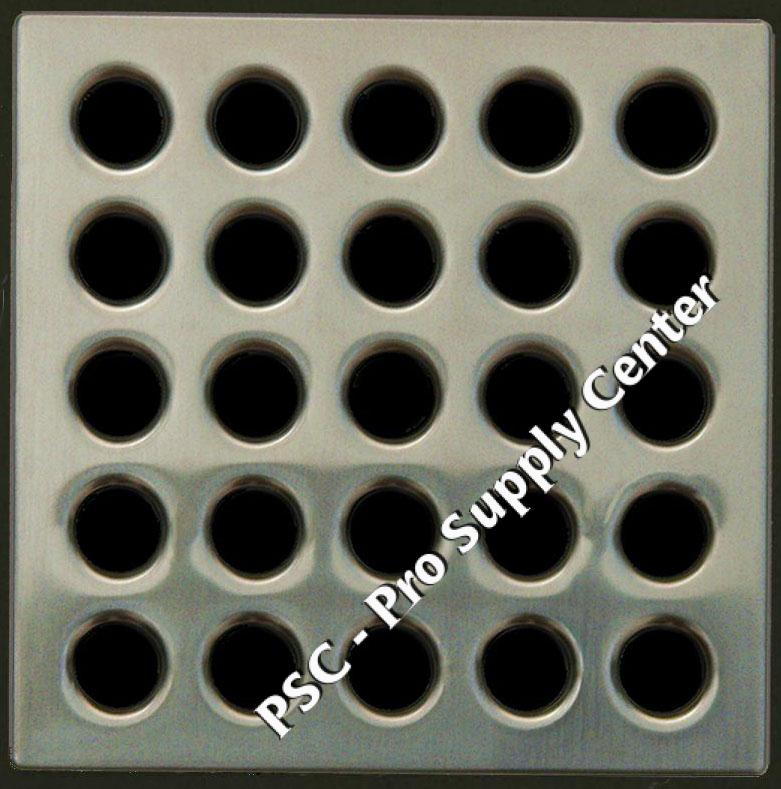

Brushed Nickel

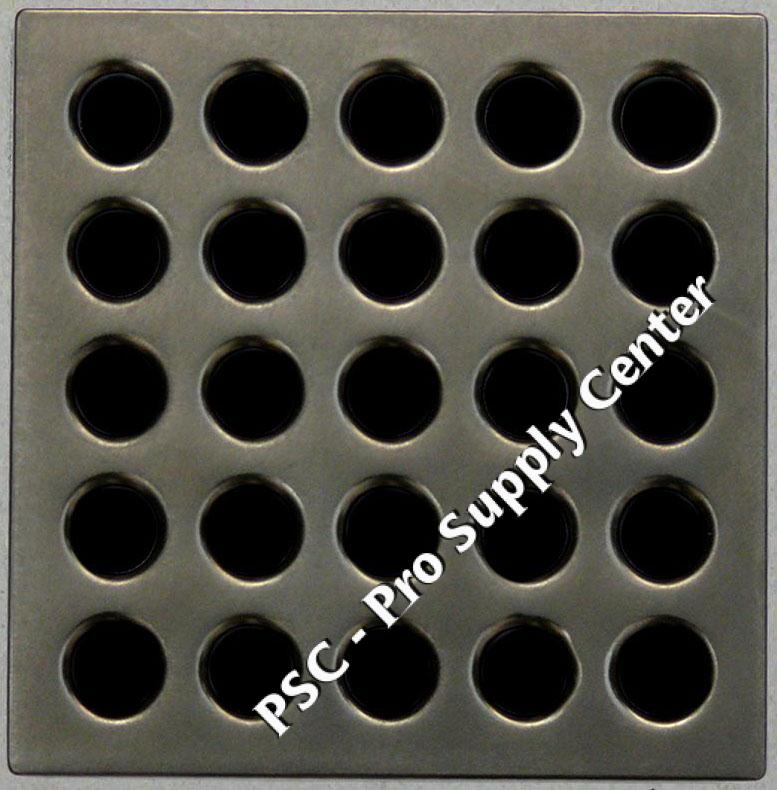

Antique Pewter

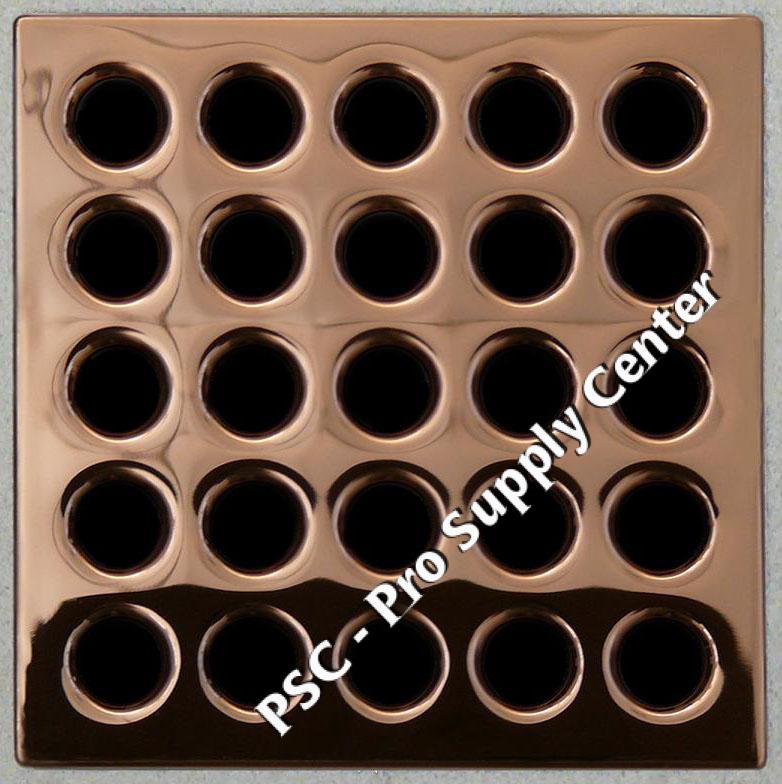

Polished Copper

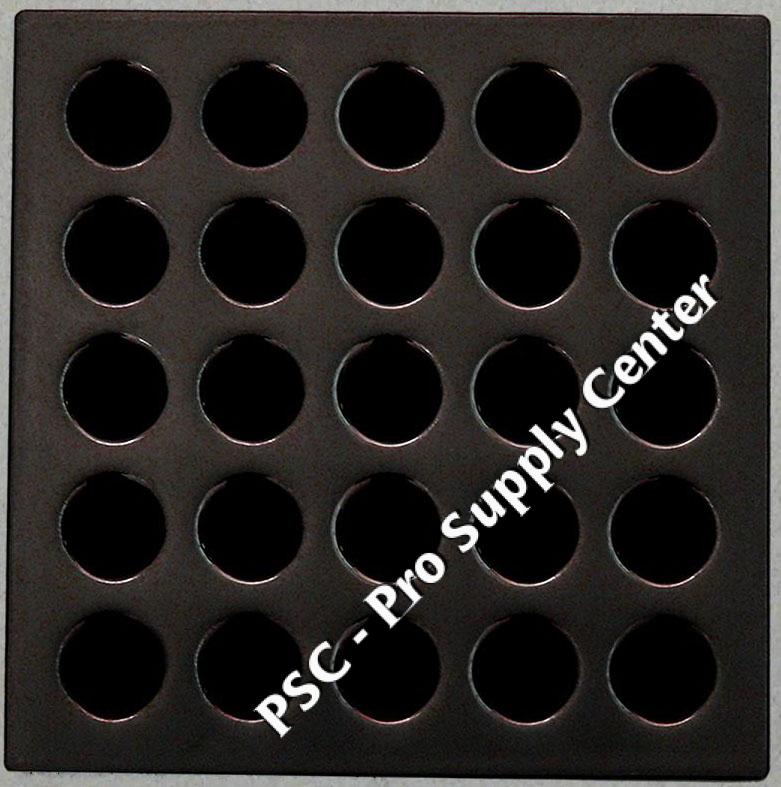

Oil Rubbed Bronze

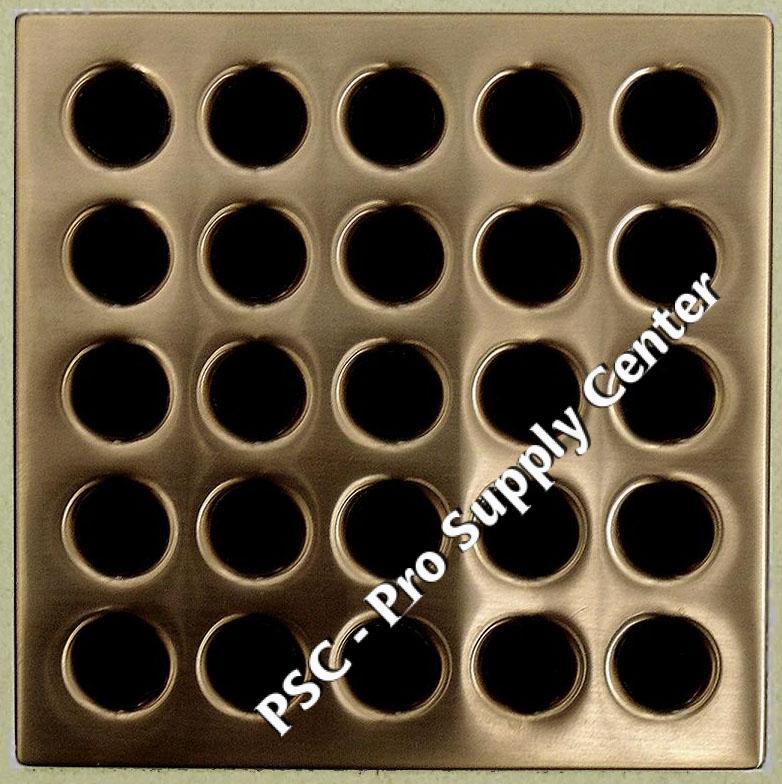

Brushed Bronze

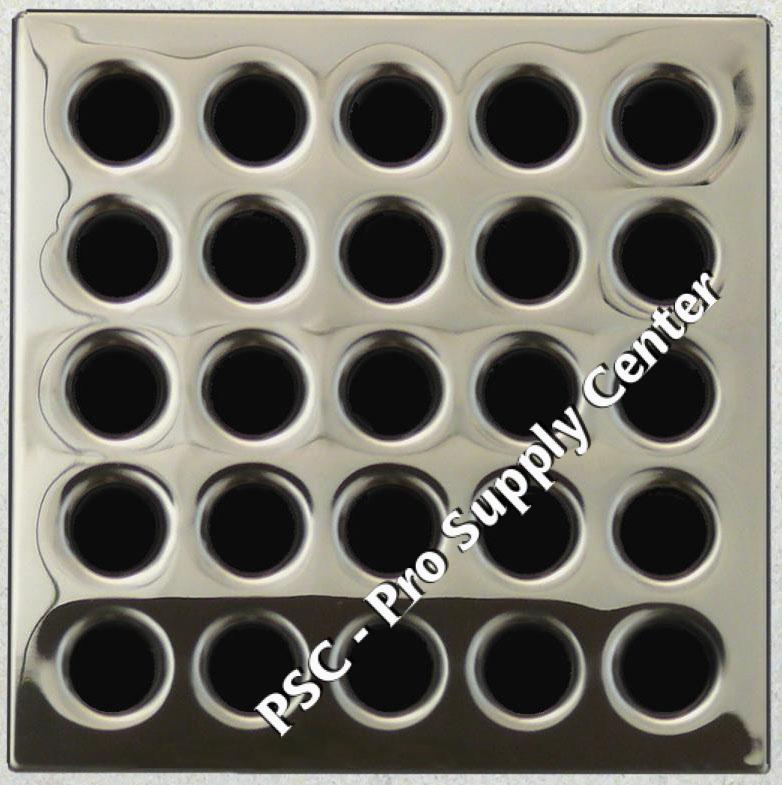

Polished Nickel

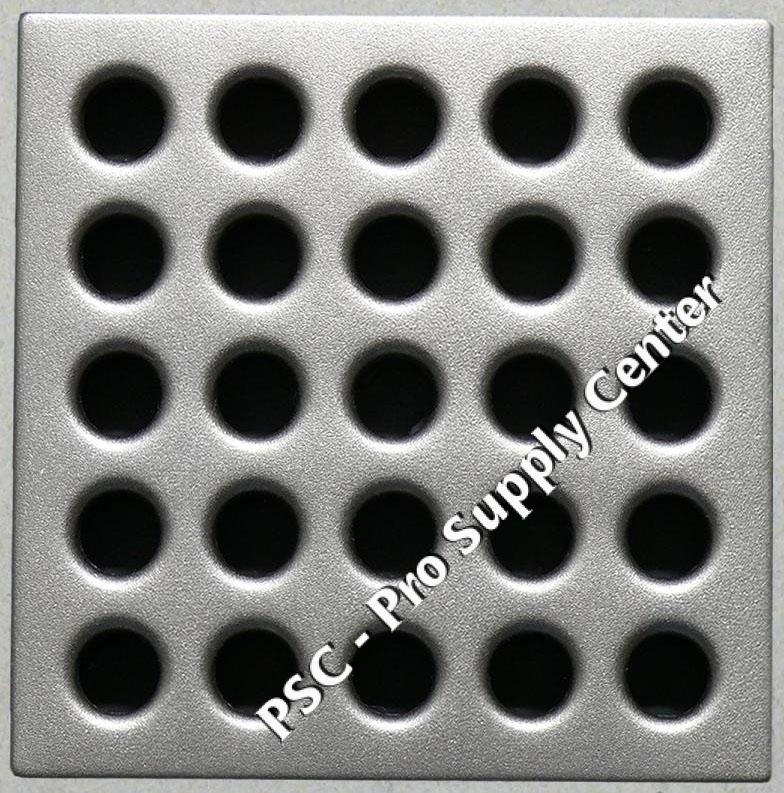

Satin NickelOptional Curbs:
| Optional Curb Overlays: (ships in 2 sections) |
 |

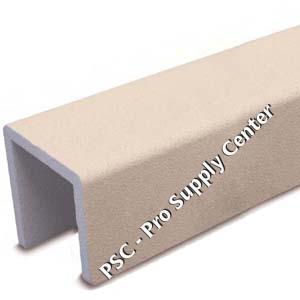

Noble Curb Overlays (over 2 by 4s) |
| Optional 4' Solid Curb: |  |

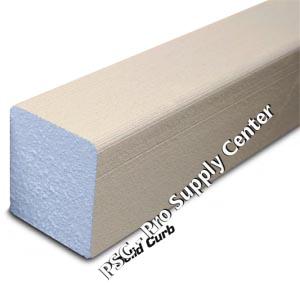

Noble Solid Shower Curb 4' |
Installation
1. Mark Drain Location
2. Cut Drain Hole
3. Test Fit
4. Lay Sections
5. Complete Pan
6. Glue Drain Flange
7. Set Inside Corners
8. Install Transistion Strip
9. Install Wall Membrane
10. Install Floor WP
11. Waterproof Curb
12. Install Outside Corner
13. Expose Drain
14. Seal Drain Flange
15. Set Grate Riser
16. Adjust Flange Subfloor
17. Lock Into Place
18. Ready for Tile!Complete your installation by adding these to your order:
| Seal your grout permanently and prevent mold or mildew from ever growing with: |  |

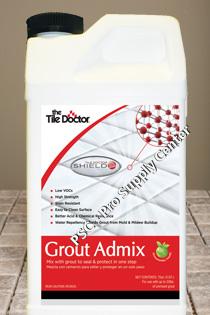

Grout Admix with Shield Technology |
| Protect your existing tile and other hard surfaces with: |  |
Shield Advanced Antimicrobial Complete System |
