Schluter Systems Kerdi Shower Drain Kit ABS, PVC or Stainless Steel Flange, 4 Inch Grate
- 4" (100 mm) square, fully adjustable grate
- Accommodates 1/4" (6 mm) to 1-1/4" (32 mm) tile thicknesses
- ABS, PVC or stainless steel flange, 2" (50mm) drain outlet
Schluter KERDI-DRAIN, ABS, PVC or Stainless Steel Flange, 4" Square Grate, 2" Drain Outlet
Function
- Schluter-KERDI-DRAIN is a floor drain specifically designed to allow connections to Schluter-KERDI or other load-bearing, bonded waterproof membranes, typically in shower applications
- Bonded waterproof membranes represent the current state of technology and are increasingly used for ceramic tile and natural stone coverings
- Schluter-KERDI is adhered to the drain's large, trapezoid-perforated bonding flange, which is covered with a fleece webbing, to form a waterproof connection at the top of the drain assembly
- KERDI-DRAIN features a square, fully adjustable grate to accommodate 1/4" (6 mm) to 1-1/4" (32 mm) tile thicknesses
- The grate assembly allows lateral and tilt adjustment as well
- KERDI-DRAIN with a 4" grate is designed to simply integrate with standard 2" (51 mm) drain pipes, while the 6" grate version is suitable for 2" and 3" drain outlets.
This kit from bulk components DOES NOT include pipe or mixing valve seal - please order separately
Available Grates
4" Grate Options |
||||
|---|---|---|---|---|
| Stainless Steel | Anodized Aluminum | |||
Stainless steel (E) |
Oil-rubbed bronze (EOB) |
Brushed Nickel (ATGB) |
Brushed copper/bronze (AKGB) |
Brushed brass (AMGB) |
6" Grate Options |
|
|---|---|
| Stainless Steel | |
Stainless steel square (6E) |

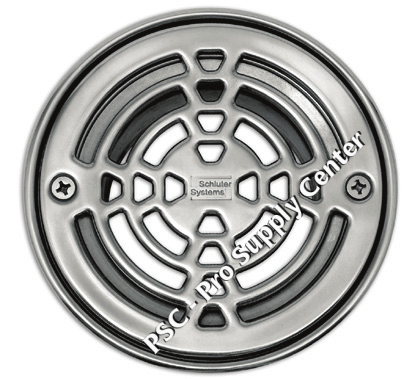

Stainless steel round (6RE) |
